Fish Ladders & Aquatic Life Passage

Restoring Aquatic Habitat While Protecting Public Infrastructure

Fish ladders and aquatic life baffles are engineered environmental solutions designed to restore natural stream connectivity while maintaining the structural integrity of culverts, sewer systems, and roadway crossings. Across the Northeast and throughout the country, aging infrastructure and undersized culverts have unintentionally created barriers to fish migration, increased erosion, and contributed to environmental degradation.

DL VEWS partners with municipalities, engineers, and contractors to implement fish ladder systems, aquatic life baffles, and flow-control technologies that protect the environment while keeping necessary roads and public infrastructure safe. Our approach balances habitat restoration, hydraulic performance, regulatory compliance, and long-term structural reliability.

Fish ladders and baffle systems are typically installed within existing culverts or new pipe structures to slow water velocity, create resting pools, and simulate natural stream conditions. Before installation begins, hydraulic modeling and environmental assessments are conducted to ensure the design supports both fish passage requirements and roadway load demands. Once installed, these systems allow fish and aquatic organisms to move upstream safely while maintaining the flow capacity needed to prevent flooding and roadway overtopping.

Municipalities and environmental agencies often select fish ladder and aquatic life solutions because they address ecological restoration and infrastructure performance simultaneously. Some of the reasons to incorporate fish passage systems include, but are not limited to:

Improved fish passage. Fish ladders and engineered baffles reduce velocity barriers and create step-pool formations that allow trout, salmon, eel, and other species to migrate upstream naturally.

Habitat restoration. These systems restore stream continuity, improve spawning access, and strengthen aquatic ecosystems.

Regulatory compliance. Many state and federal agencies require fish passage accommodations during culvert replacement or rehabilitation projects.

Roadway protection. Properly engineered fish ladder systems maintain hydraulic capacity and structural performance to prevent washouts and protect public safety.

Cost efficiency. Retrofitting structurally sound culverts with aquatic life baffles is often more cost-effective than complete culvert replacement.

Reduced environmental disruption. Internal fish passage systems minimize in-stream disturbance compared to full excavation and reconstruction.

Long-term durability. When properly designed, fish ladders and baffle systems are built to perform for decades while maintaining both environmental and structural integrity.

Integrated Environmental Flow Control

In addition to fish ladders and aquatic life passage systems, DL VEWS represents innovative environmental protection technologies including Channeline baffled pipe and Snap-Tite® factory-installed baffles.

Click below for the benefits of each product.

Channeline

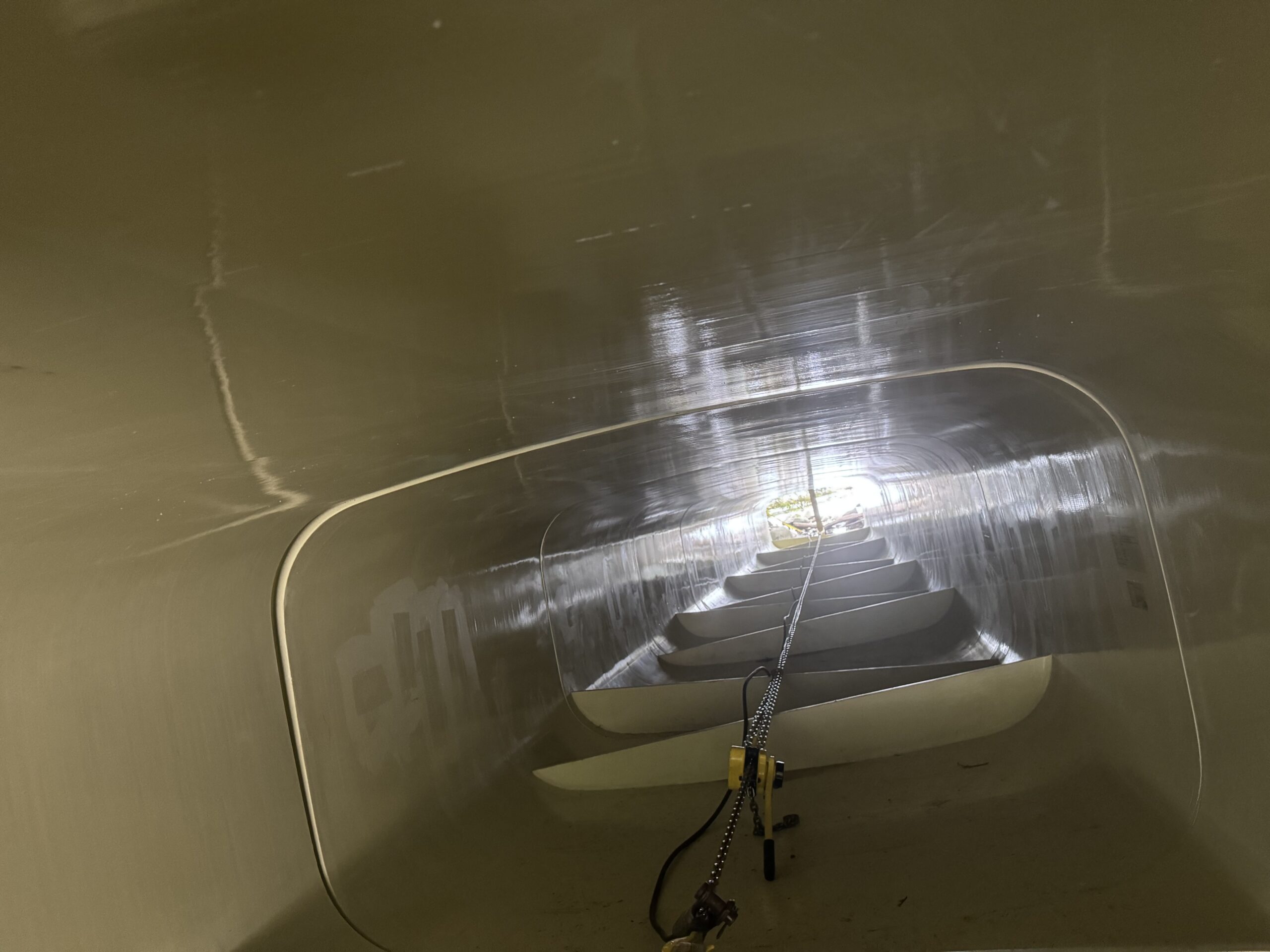

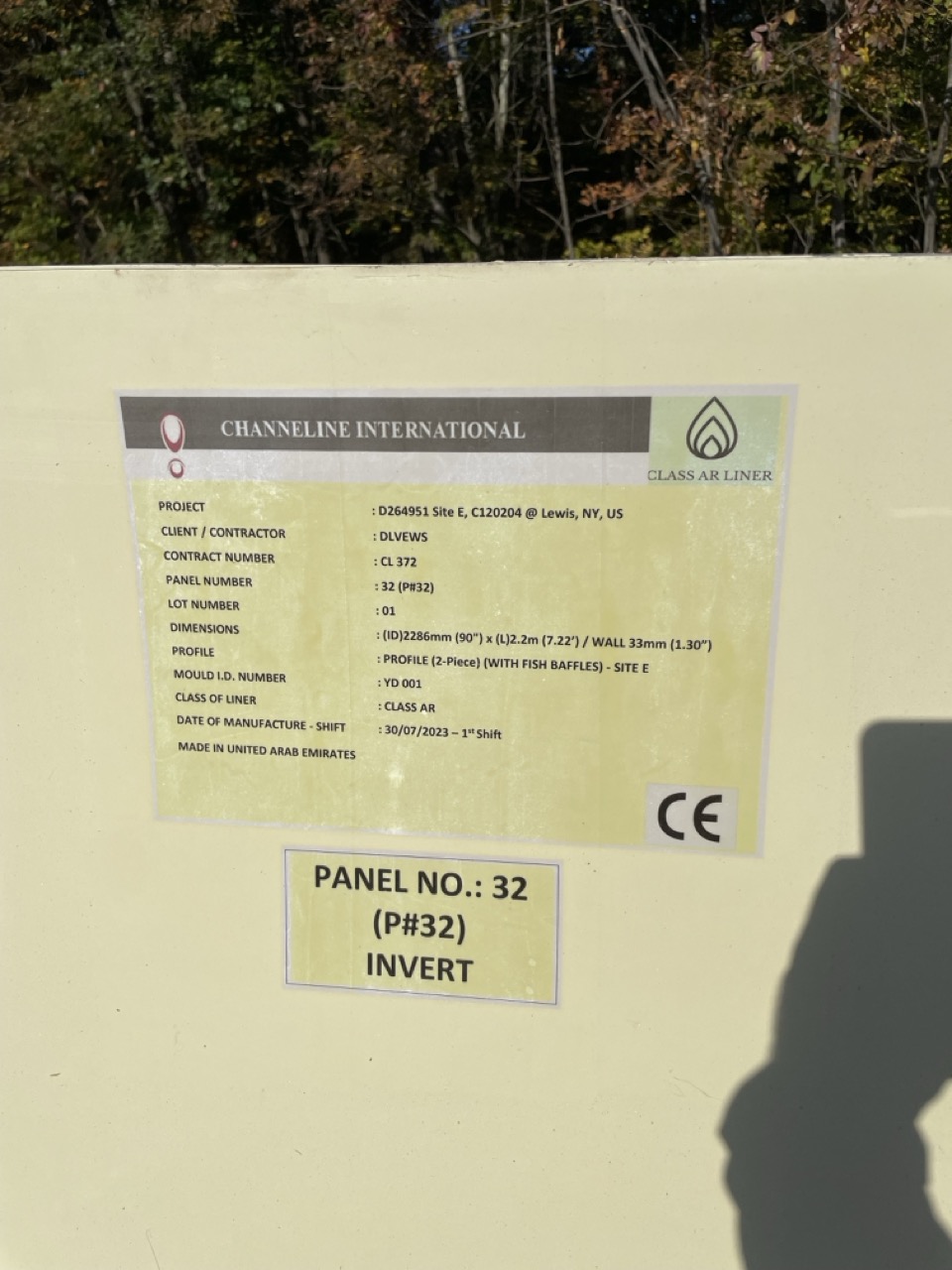

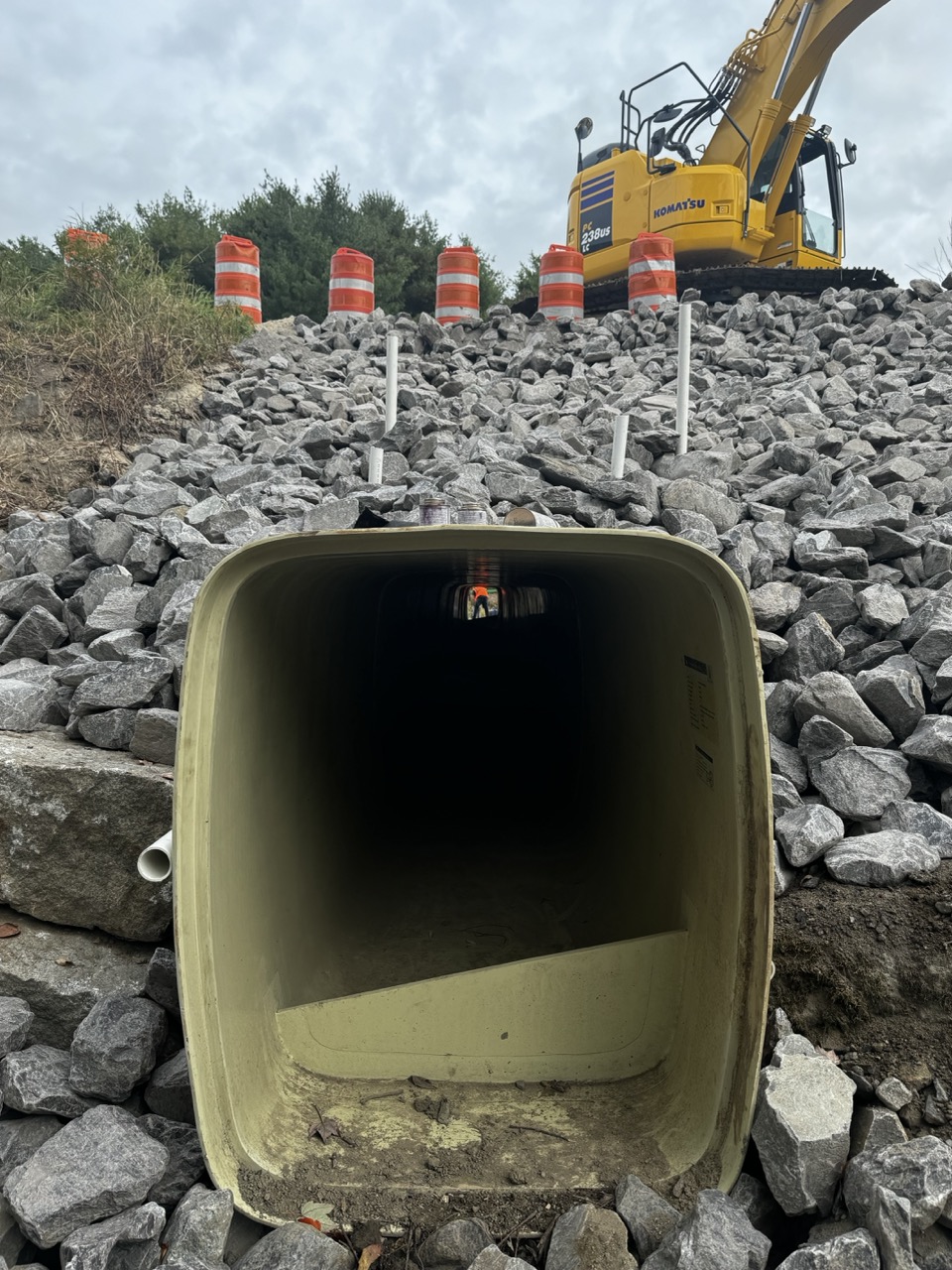

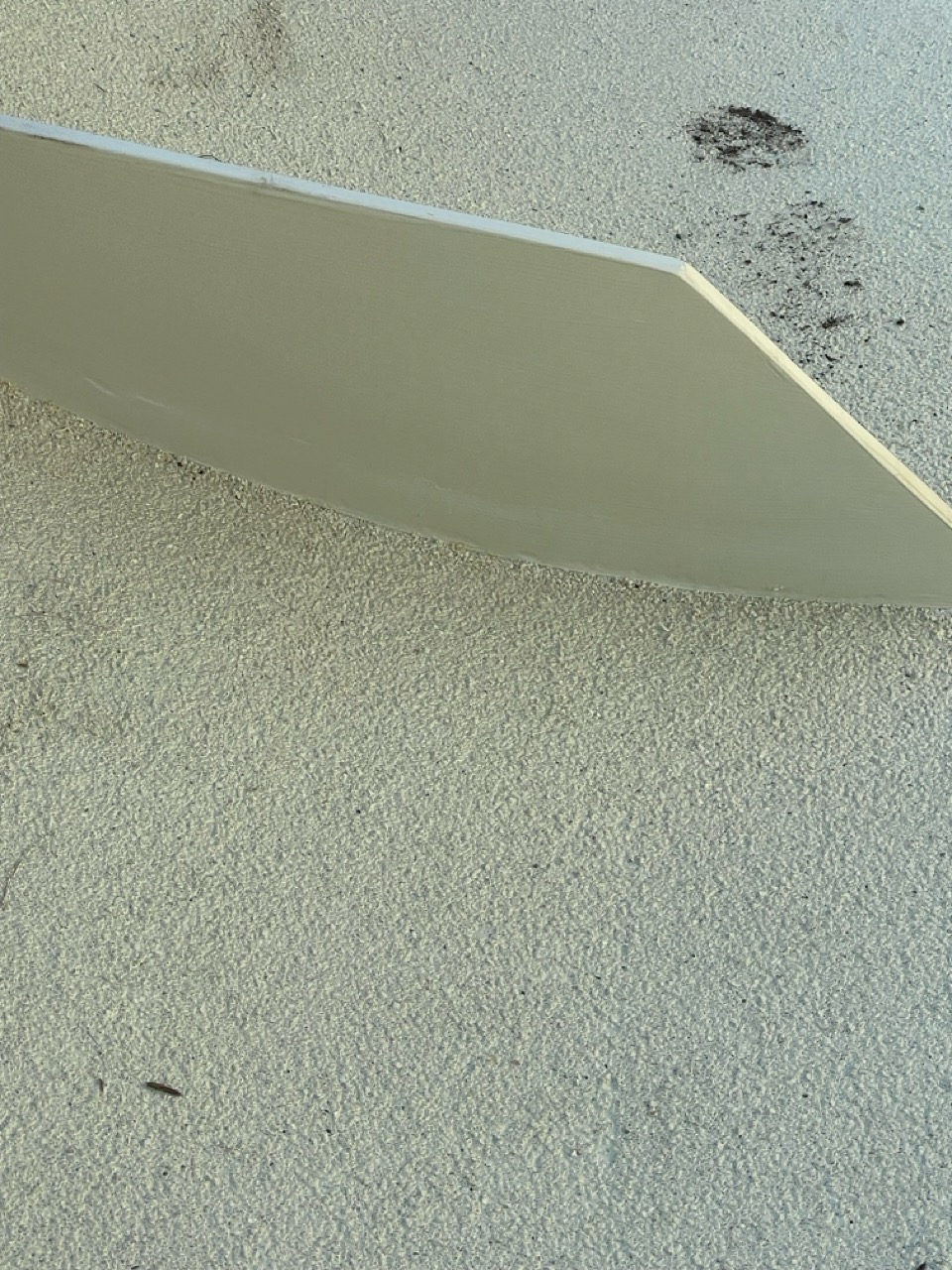

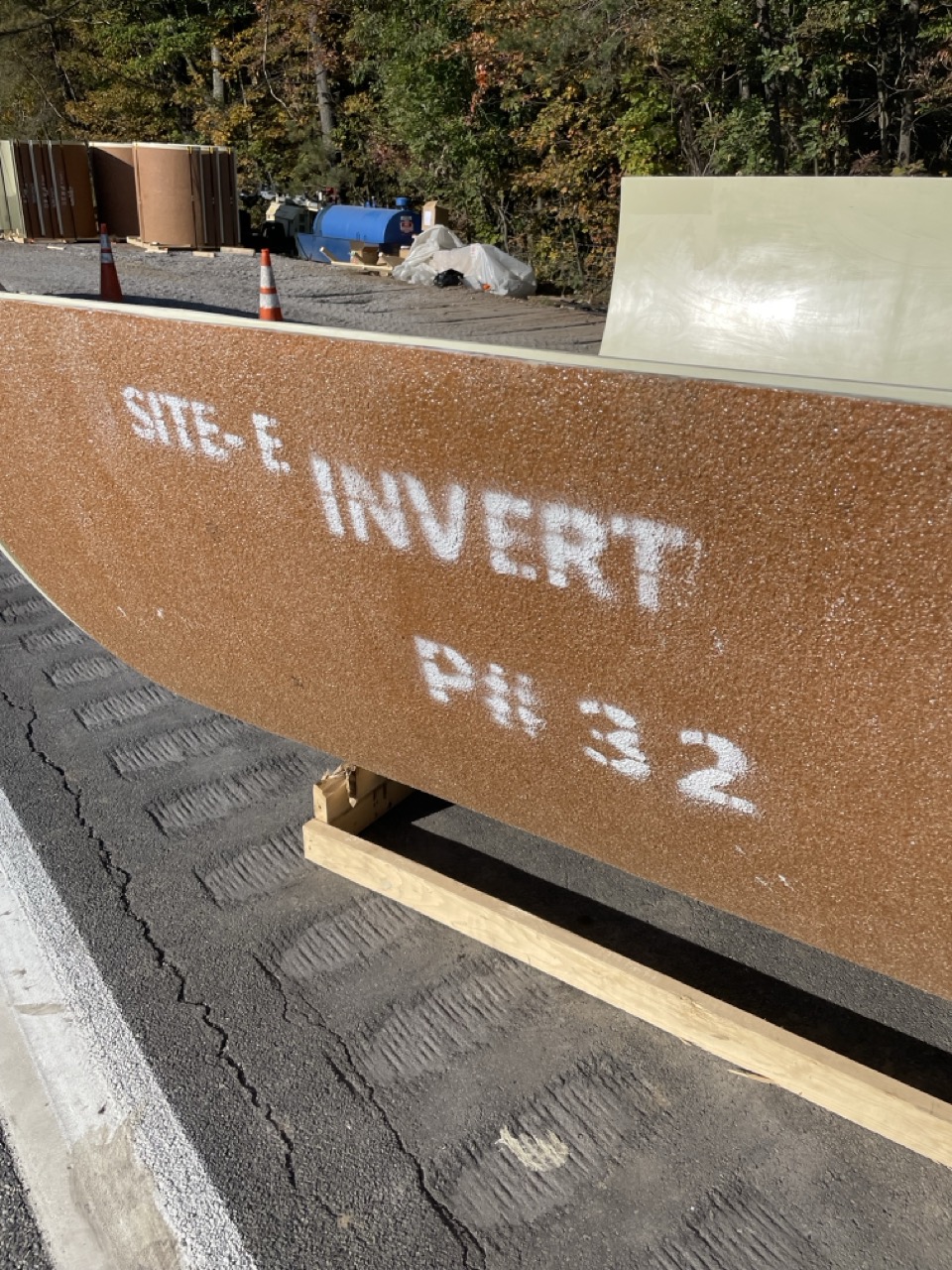

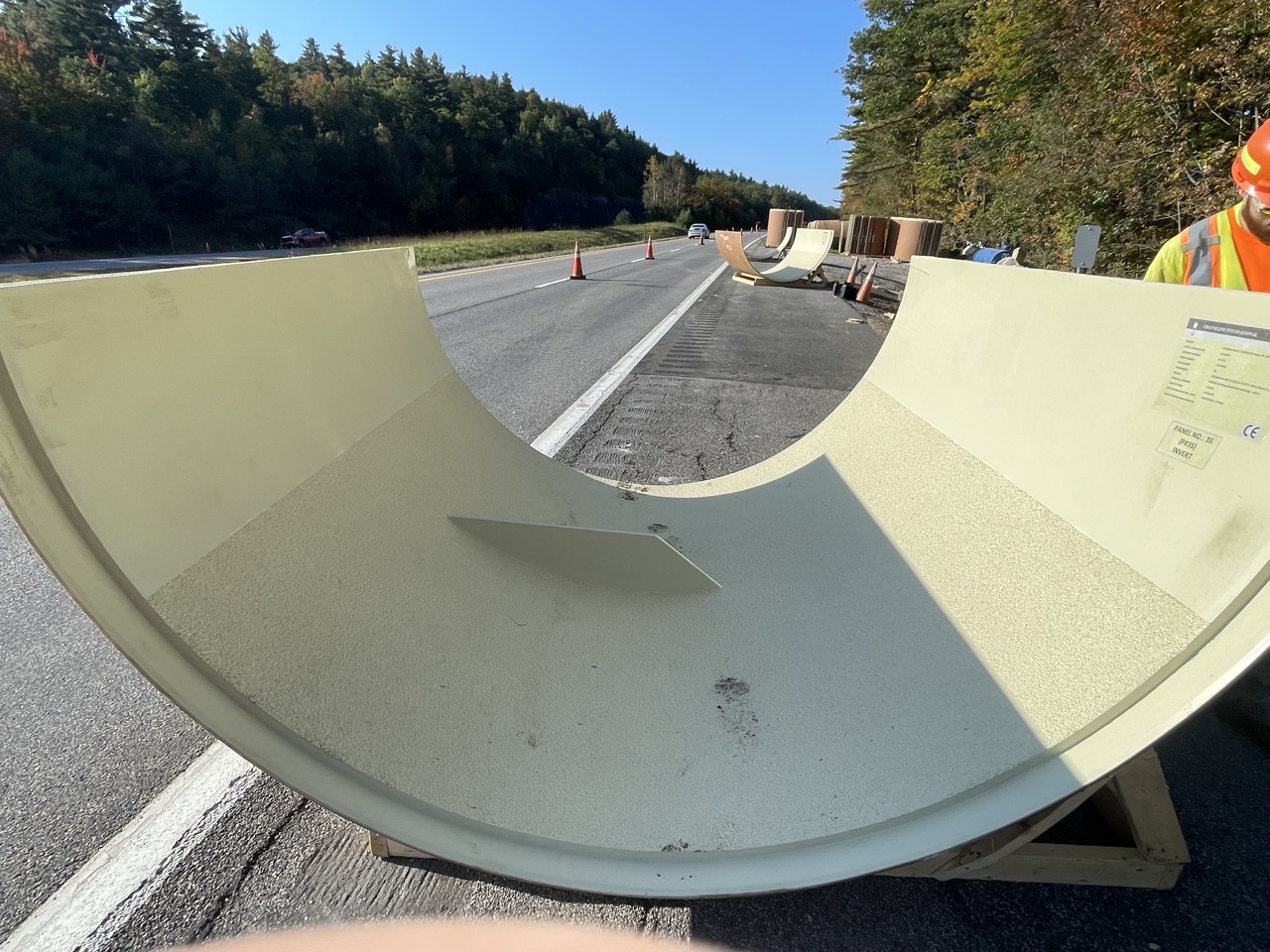

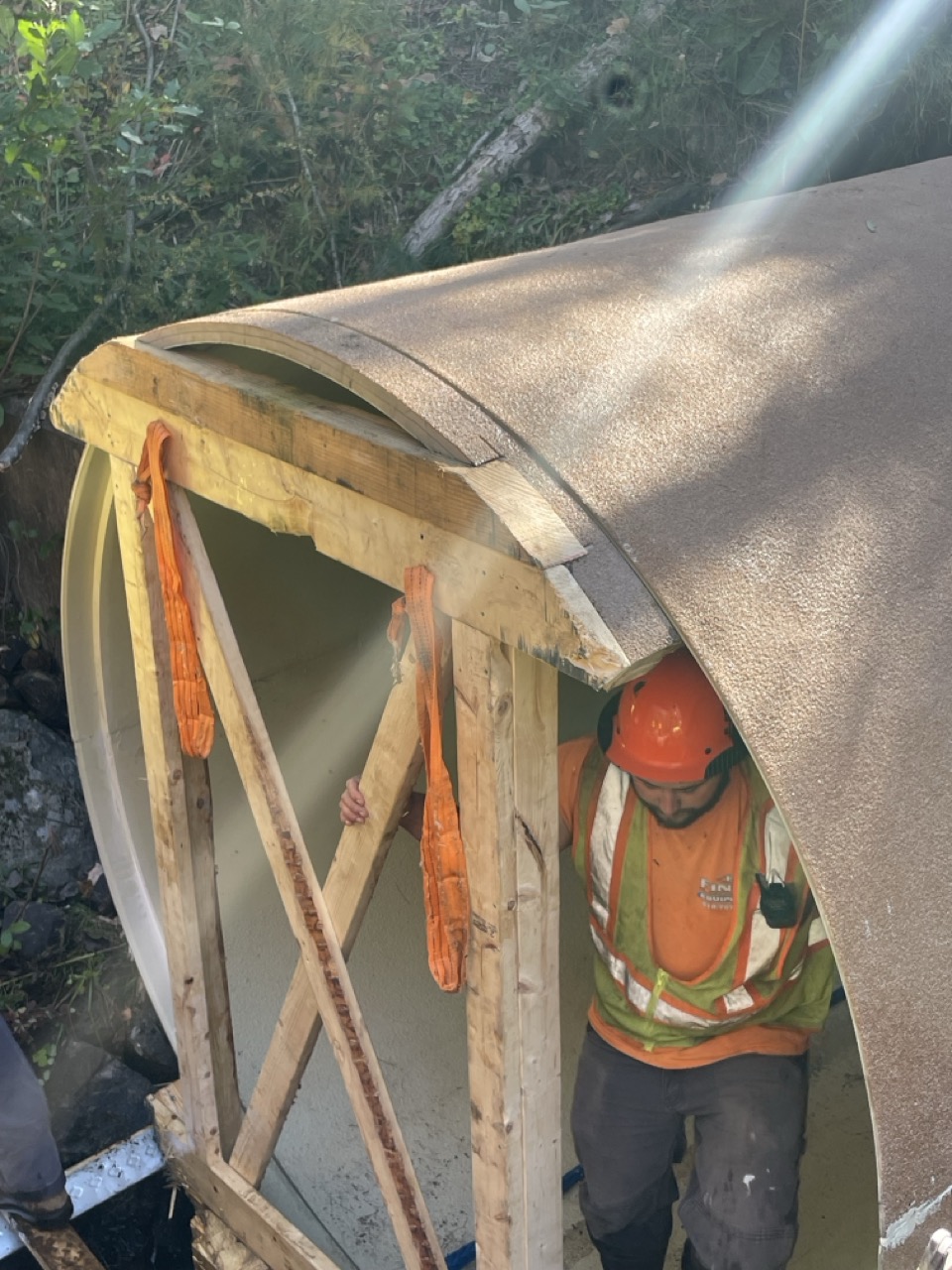

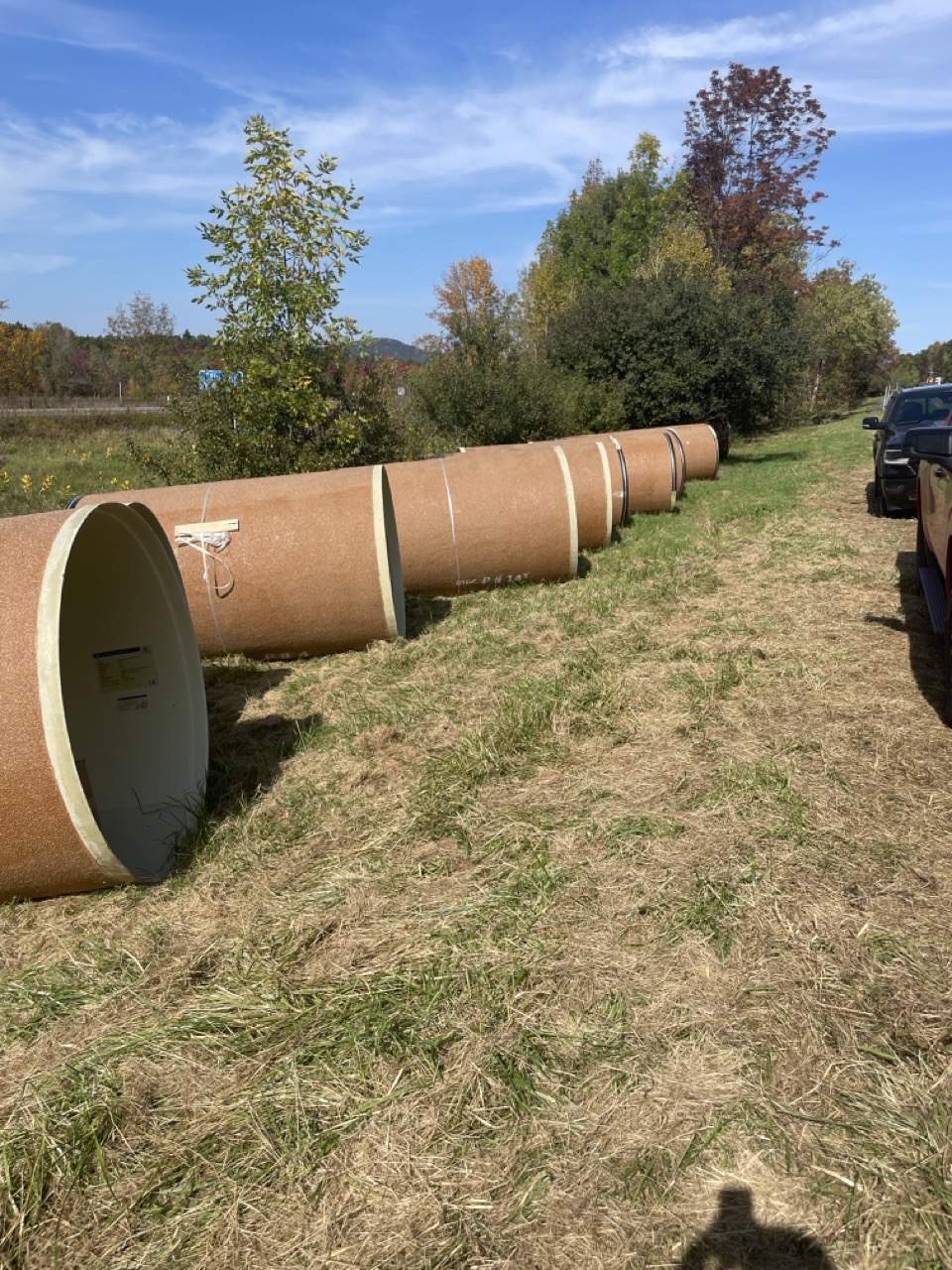

Channeline culvert rehabilitation systems can be manufactured with integrated baffles inside the pipe structure, creating step-pool formations that slow water velocity and simulate natural stream conditions. These internal baffles reduce hydraulic barriers and provide resting zones that allow fish to successfully migrate upstream.

Snap-Tite

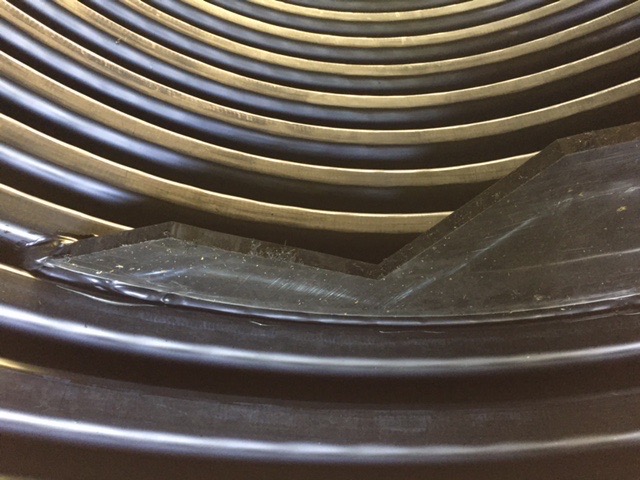

Similarly, Snap-Tite® Aquatic Life Passage systems offer factory-installed notched weir and corner baffles designed to address depth and velocity challenges within culverts. Both technologies help restore stream connectivity, allowing fish to reach critical spawning grounds and upstream feeding habitats that would otherwise be inaccessible due to high-velocity or undersized crossings.

By reducing flow velocity, increasing low-flow depth, and creating resting pools within the culvert barrel, Snap-Tite baffle systems improve passage success during both normal and peak migration events. These solutions are particularly valuable where full culvert replacement is not practical but environmental improvements are required.

Which Fish Ladder & Environmental Products Does DL VEWS Represent?

To best serve our clients and deliver reliable fish passage and environmental protection solutions, DL VEWS represents:

Snap-Tite Aquatic Life Products
Specifically engineered to improve fish passage within culverts, Snap-Tite aquatic life systems incorporate internal structures that reduce velocity barriers and simulate natural streambeds while maintaining structural strength.

FlexiBaffle System
The FlexiBaffle system retrofits into existing pipes to create step-pool formations that mimic natural stream conditions. FlexiBaffles reduce water velocity and provide resting zones for migrating fish, making them an ideal solution for fish ladder retrofits.

Weholite
DuroMaxx
Corrugated Aluminum and Aluminized Pipe
UltraFlo
Tunnel Liner Plate
SPR-PE (Spirally Wound Steel Reinforced HDPE)

Additional environmental and structural solutions are available based on project scope and regulatory requirements.

When owners, engineers, contractors, and municipalities work with DL VEWS, they can be confident that the most effective fish ladder, aquatic life, and environmental protection solutions have been evaluated — ensuring habitat restoration, regulatory compliance, hydraulic performance, and long-term infrastructure safety.

Accommodating Fish Passage & Preventing Migration Barriers

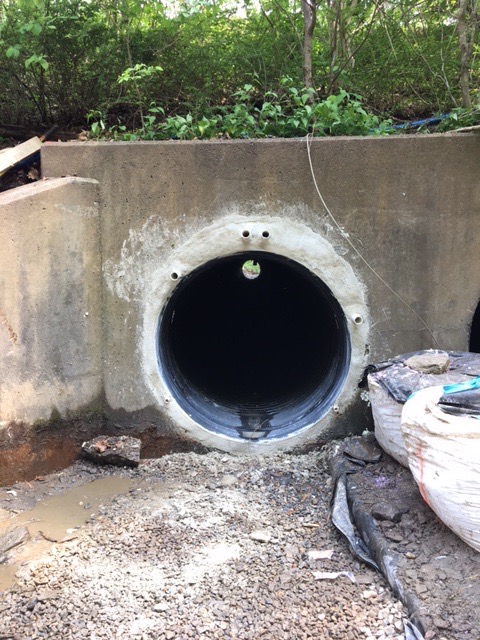

A significant number of existing culverts unintentionally create fish barriers due to excessive velocity, inadequate low-flow depth, perched outlets, or smooth interior surfaces that prevent natural stream simulation. DL VEWS works with municipalities and engineers to accommodate fish passage and prevent these barriers by utilizing advanced HDPE pipe systems and Channeline rehabilitation technologies equipped with FlexiBaffle systems by ATS.

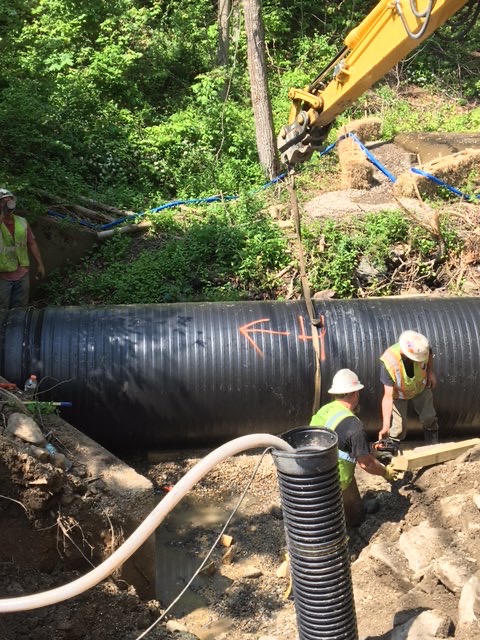

High-density polyethylene (HDPE) solutions, such as Snap-Tite® Aquatic Life Passage, provide a corrosion-resistant, abrasion-resistant pipe structure that can be manufactured with internal profiles or factory-installed baffles. These interior features act as roughness elements, slowing water velocity and allowing sediment to accumulate within the culvert barrel. The result is a more natural hydraulic condition that improves depth during low-flow periods and supports upstream migration.

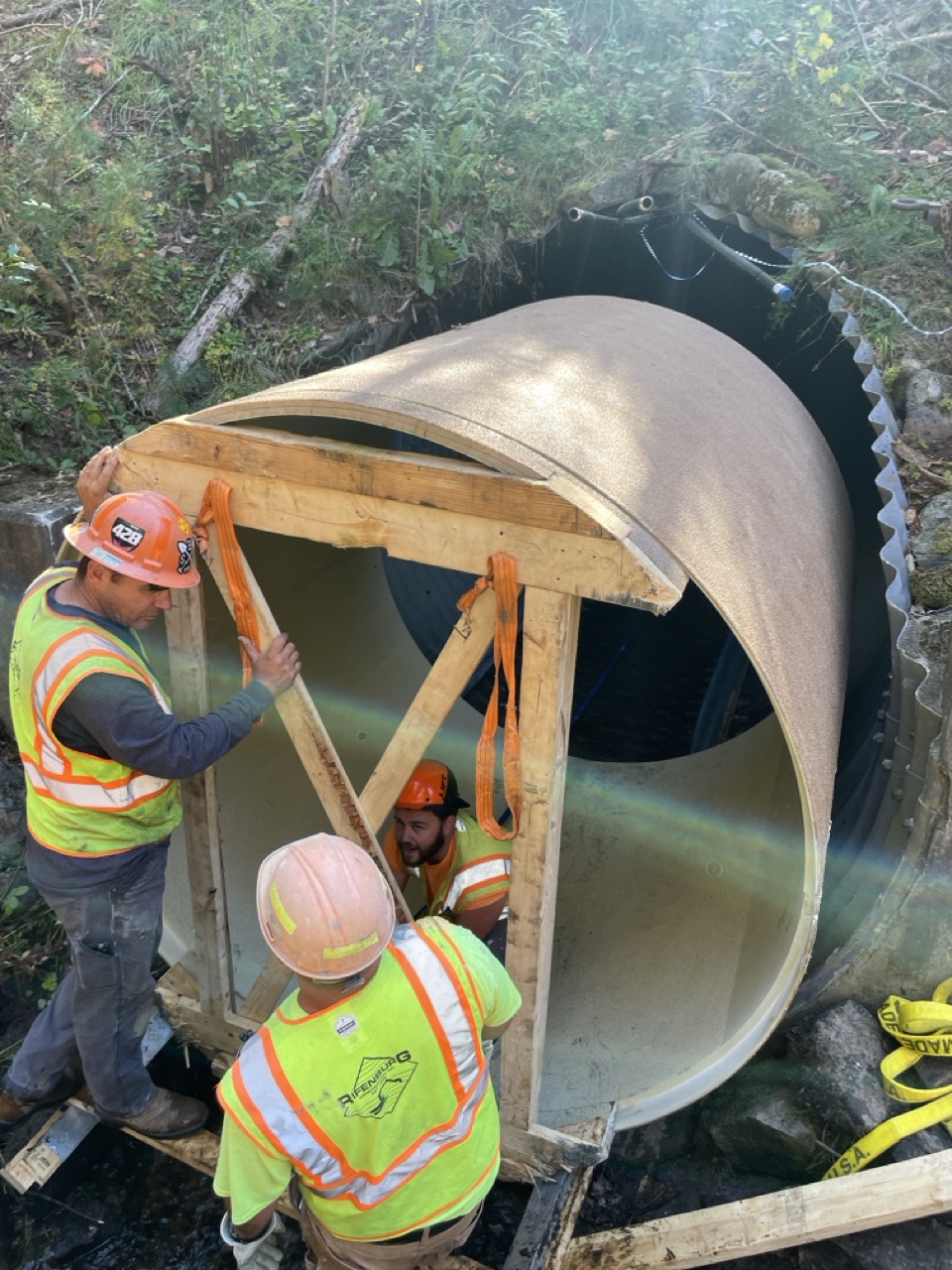

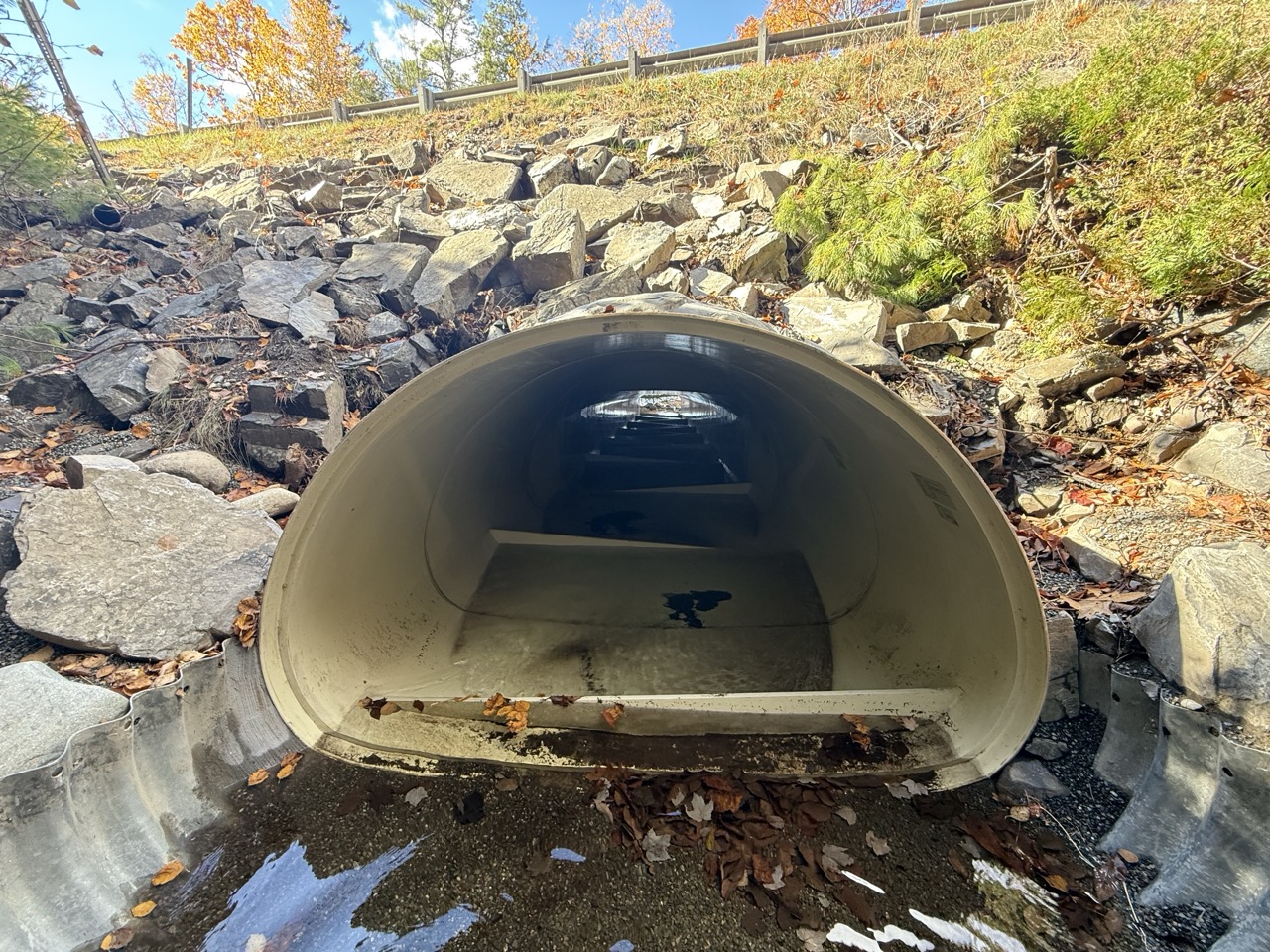

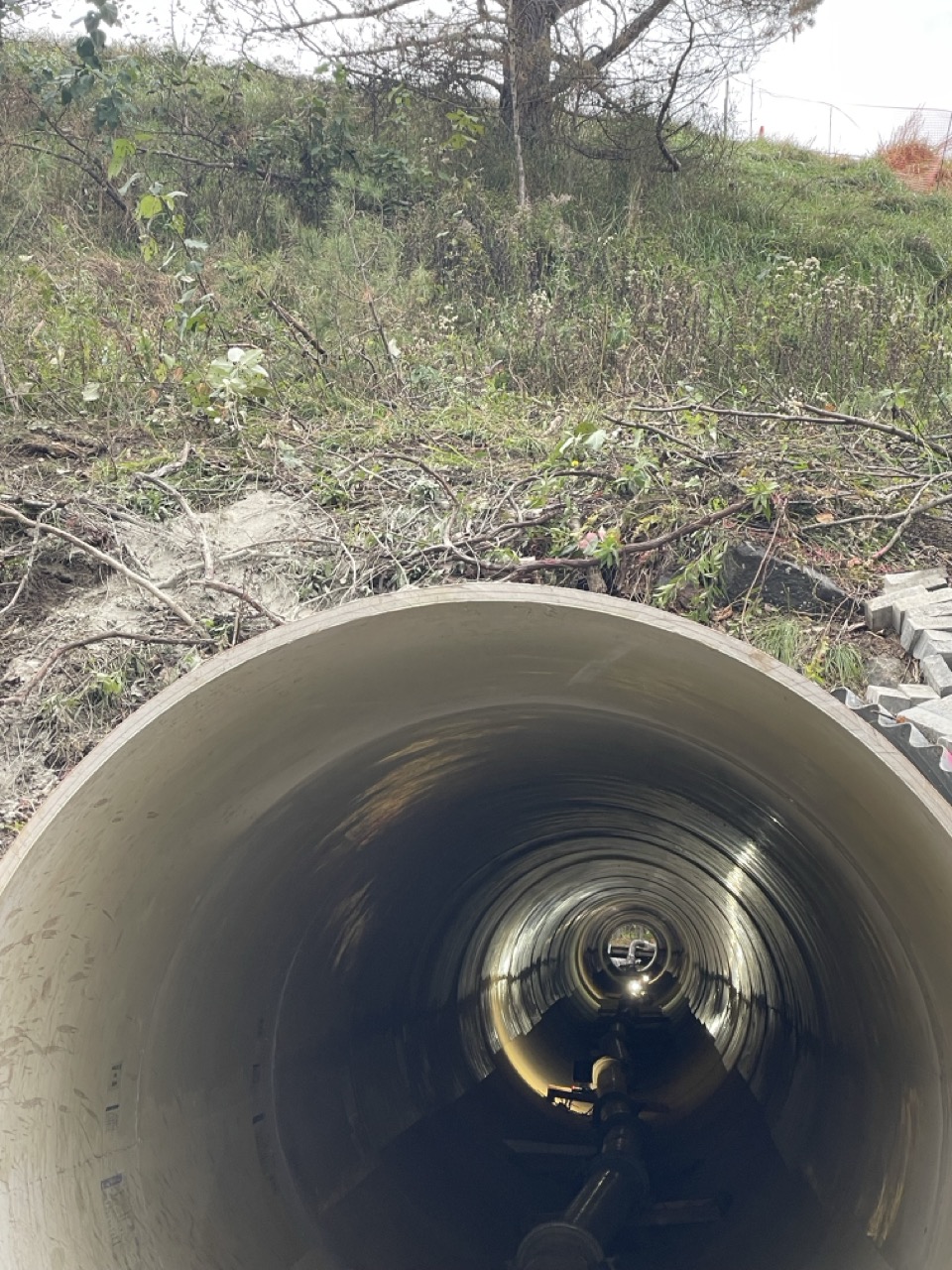

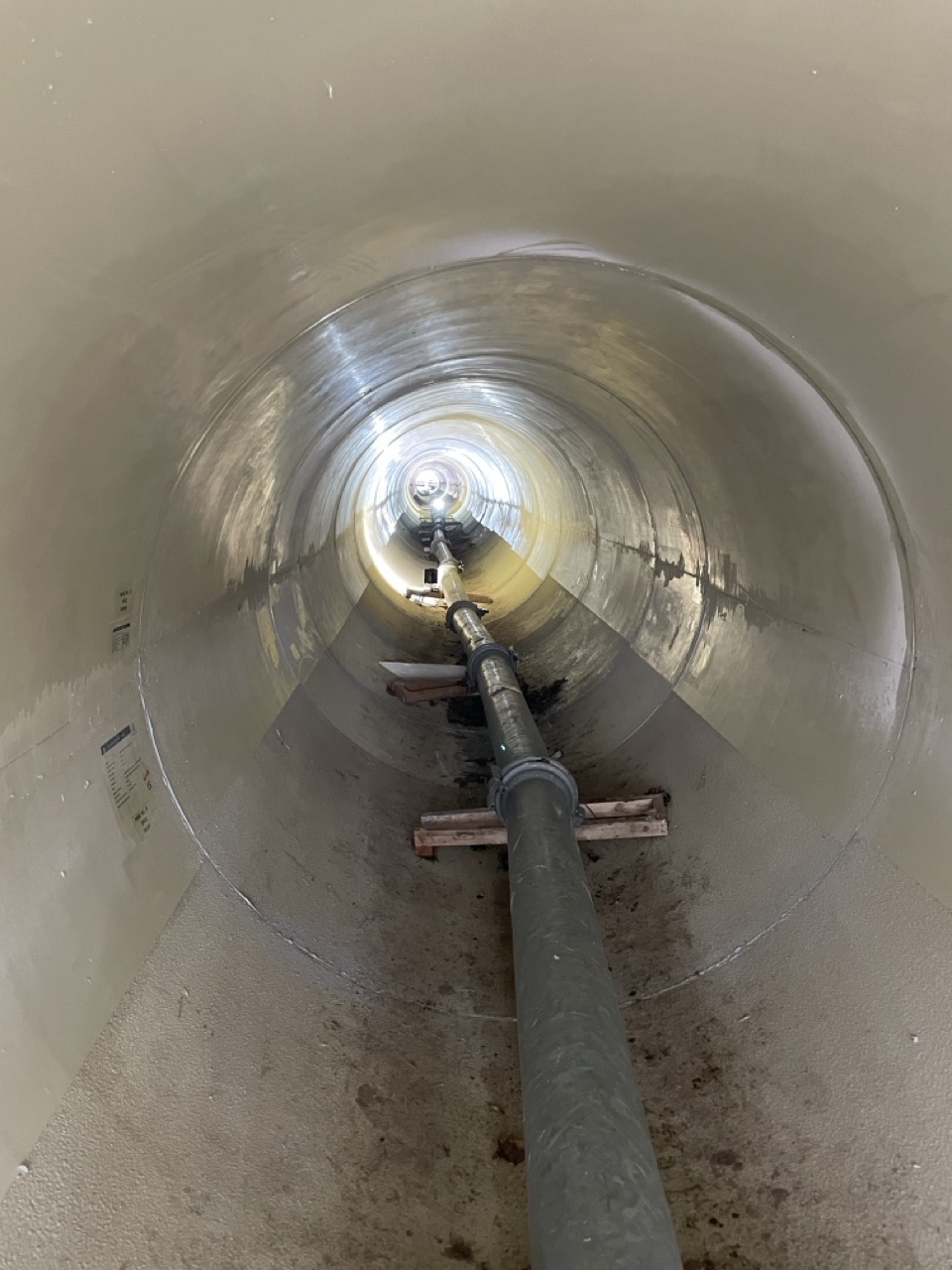

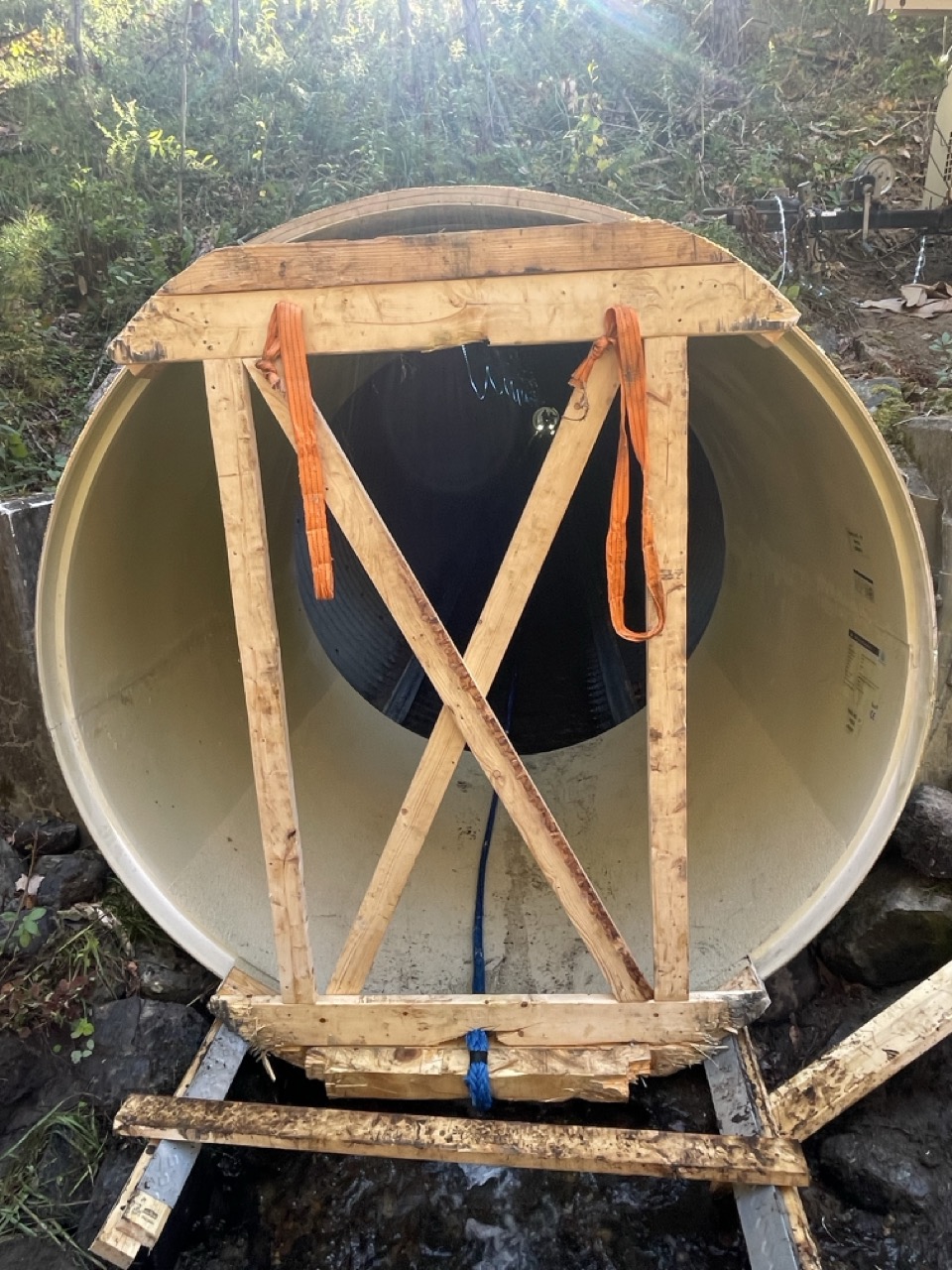

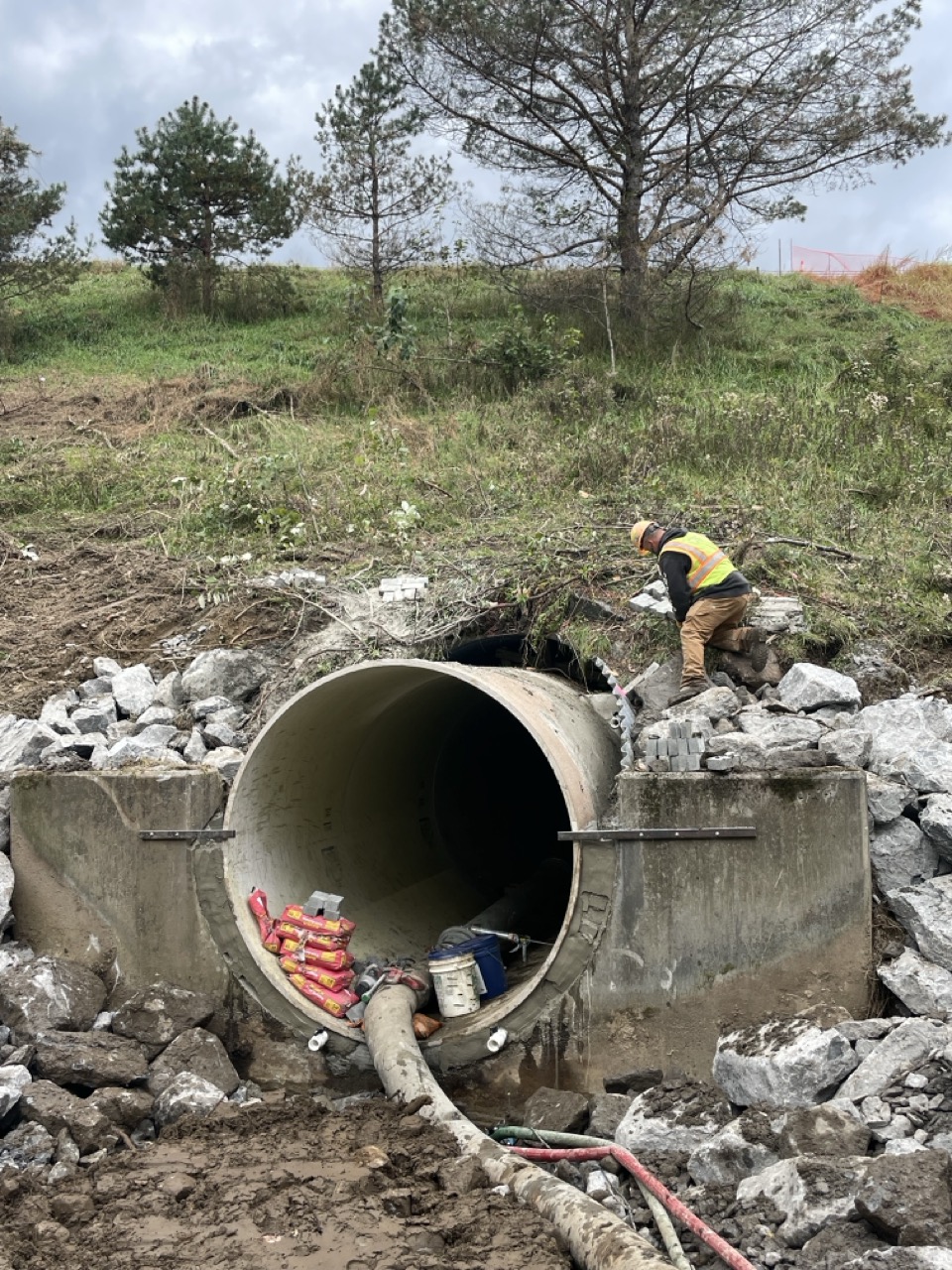

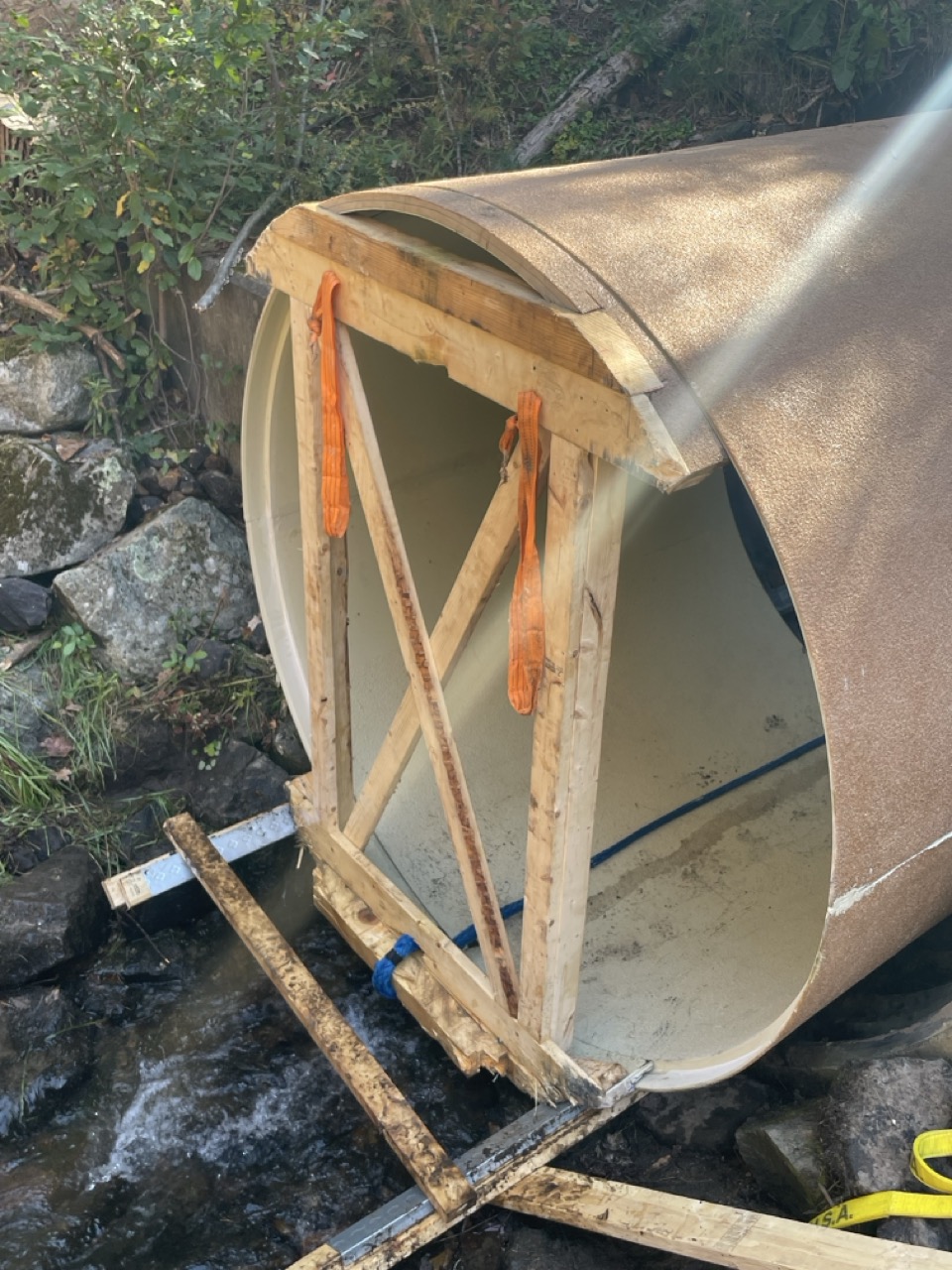

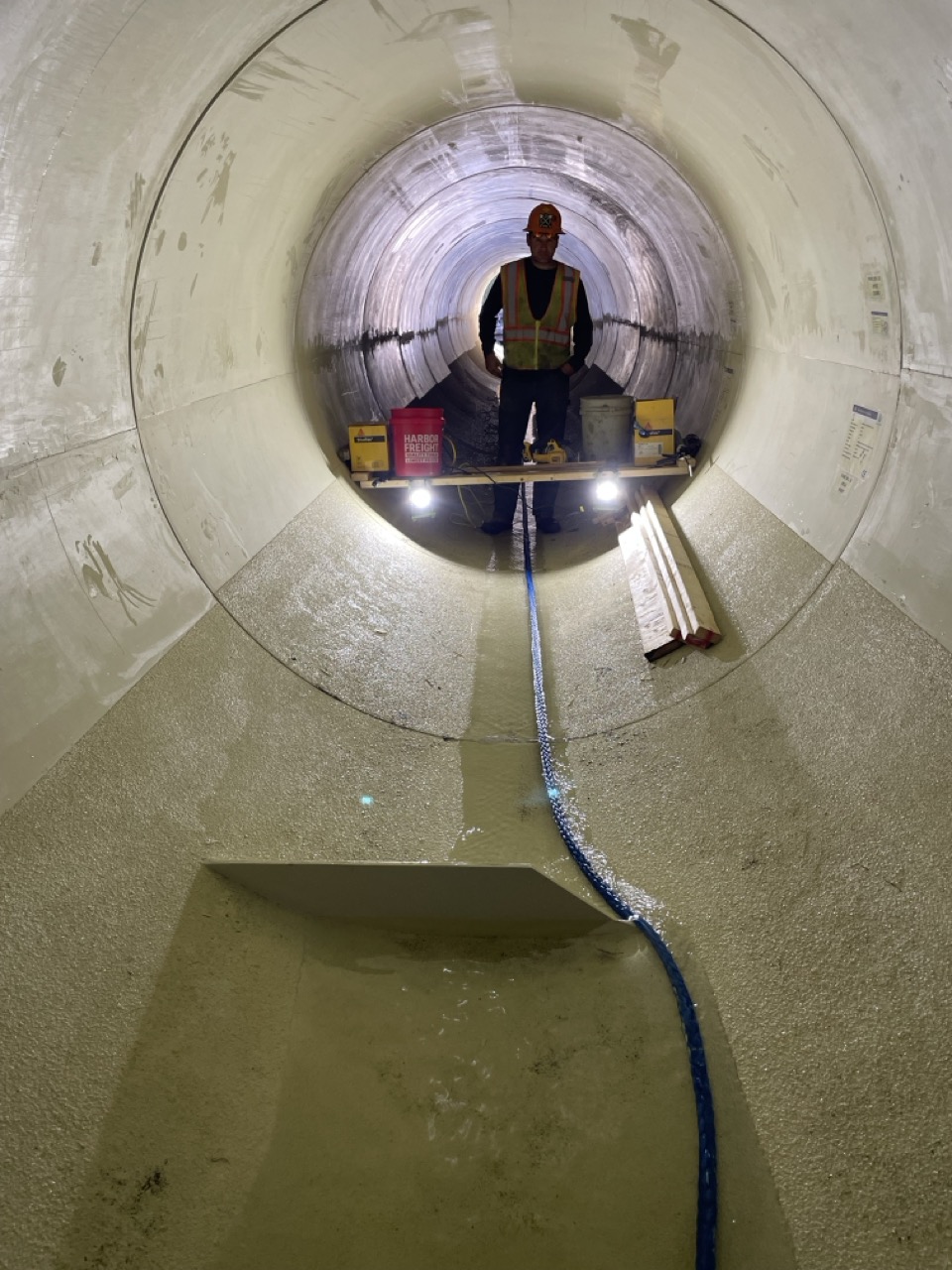

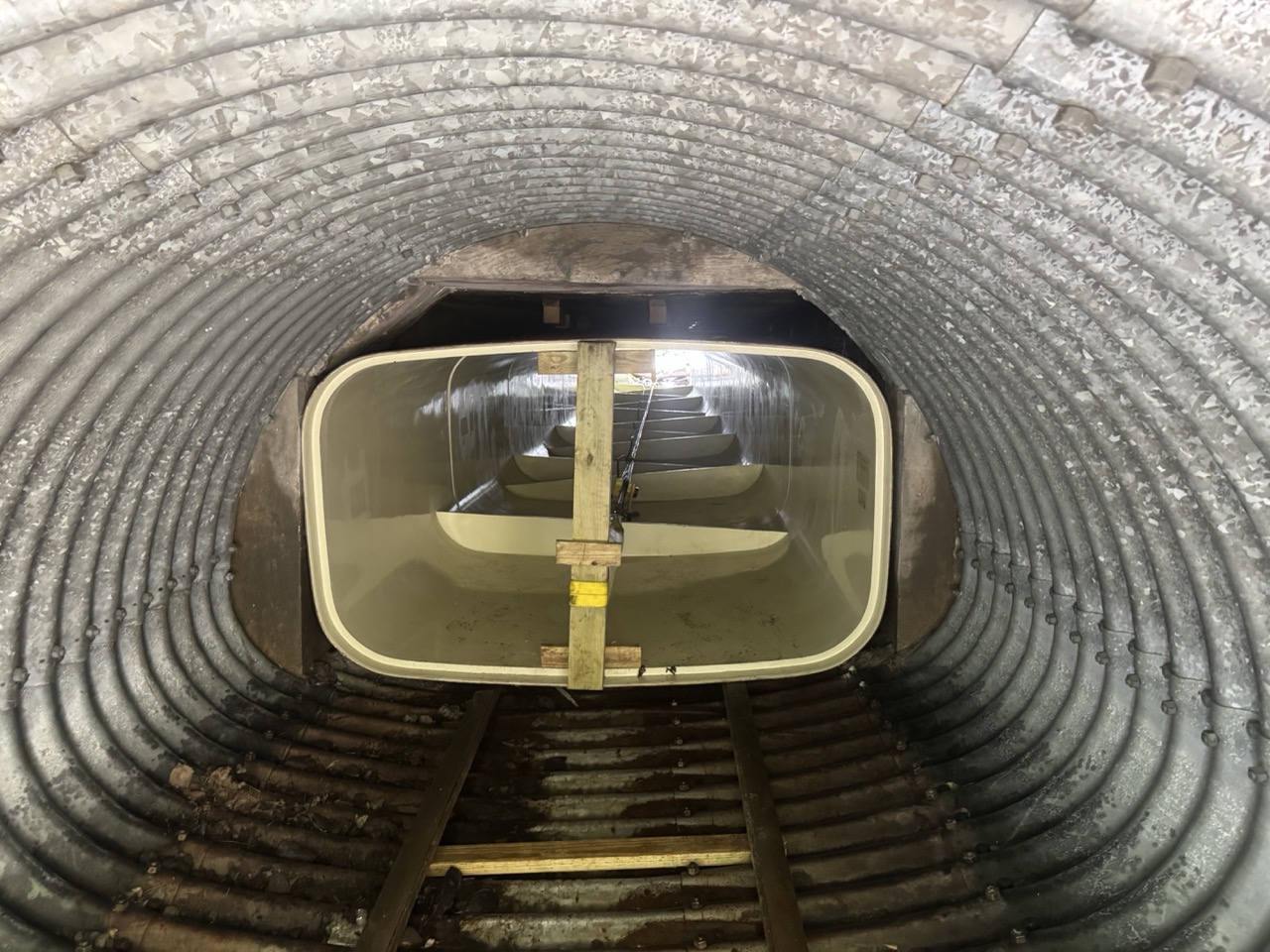

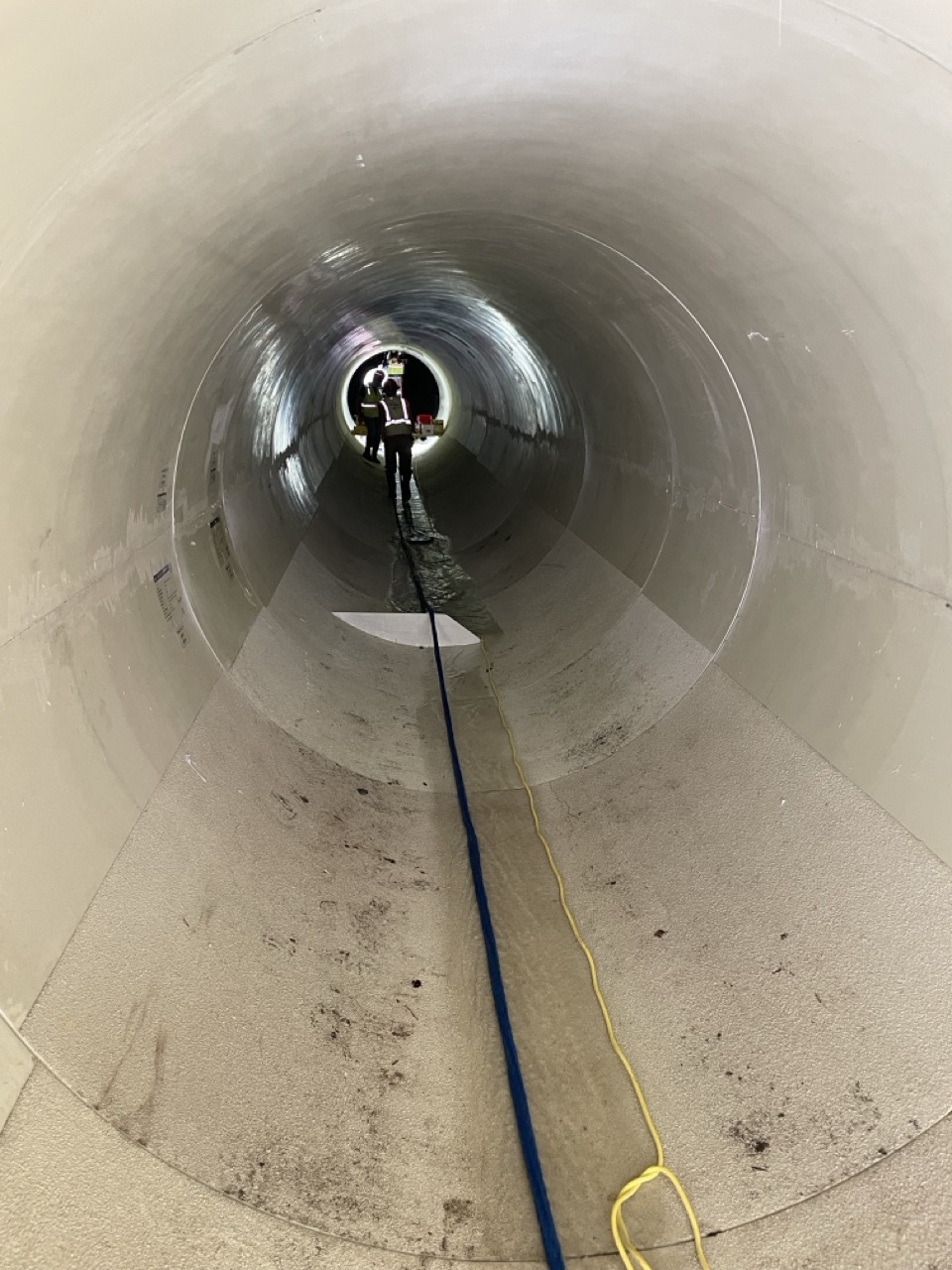

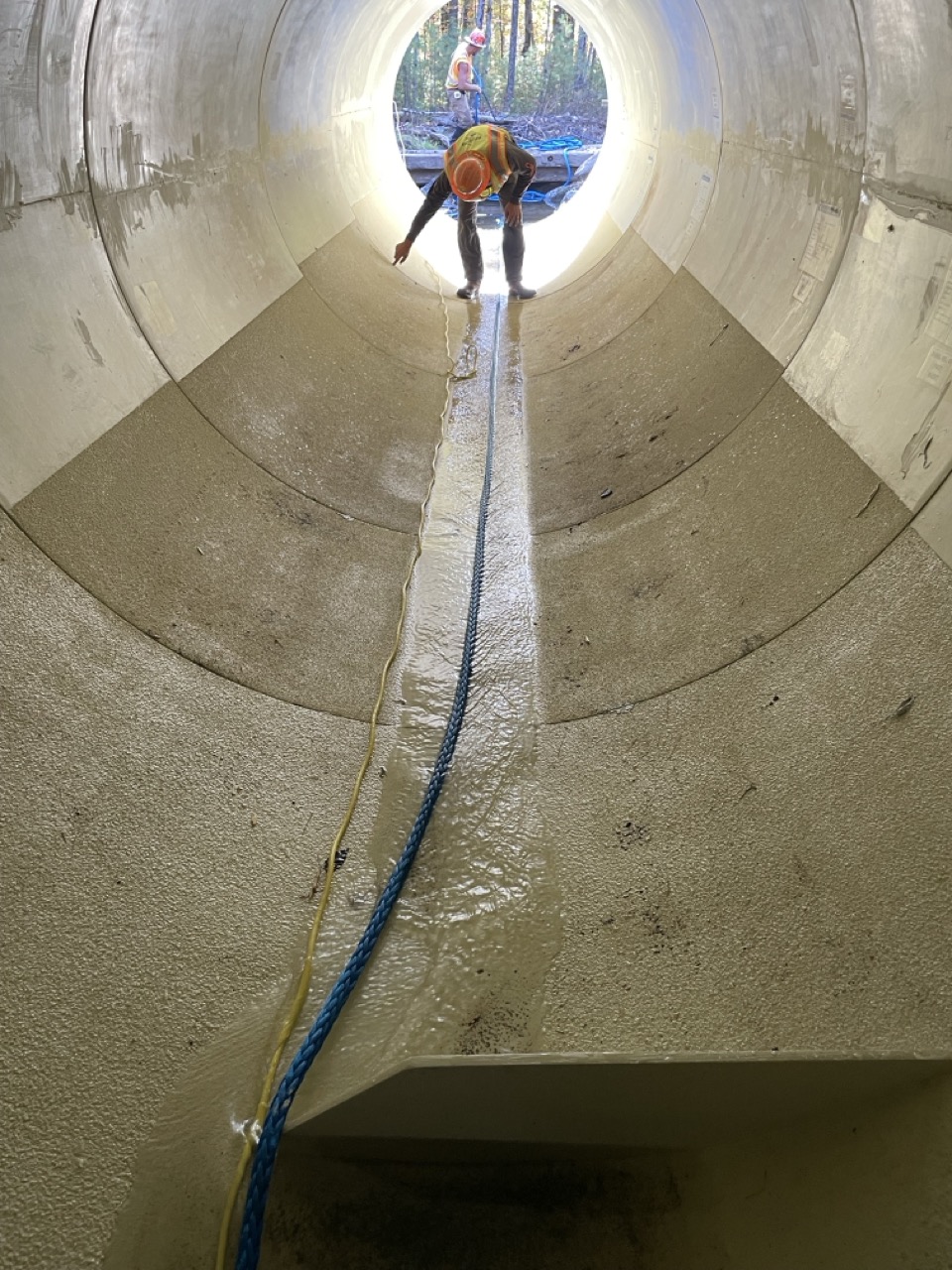

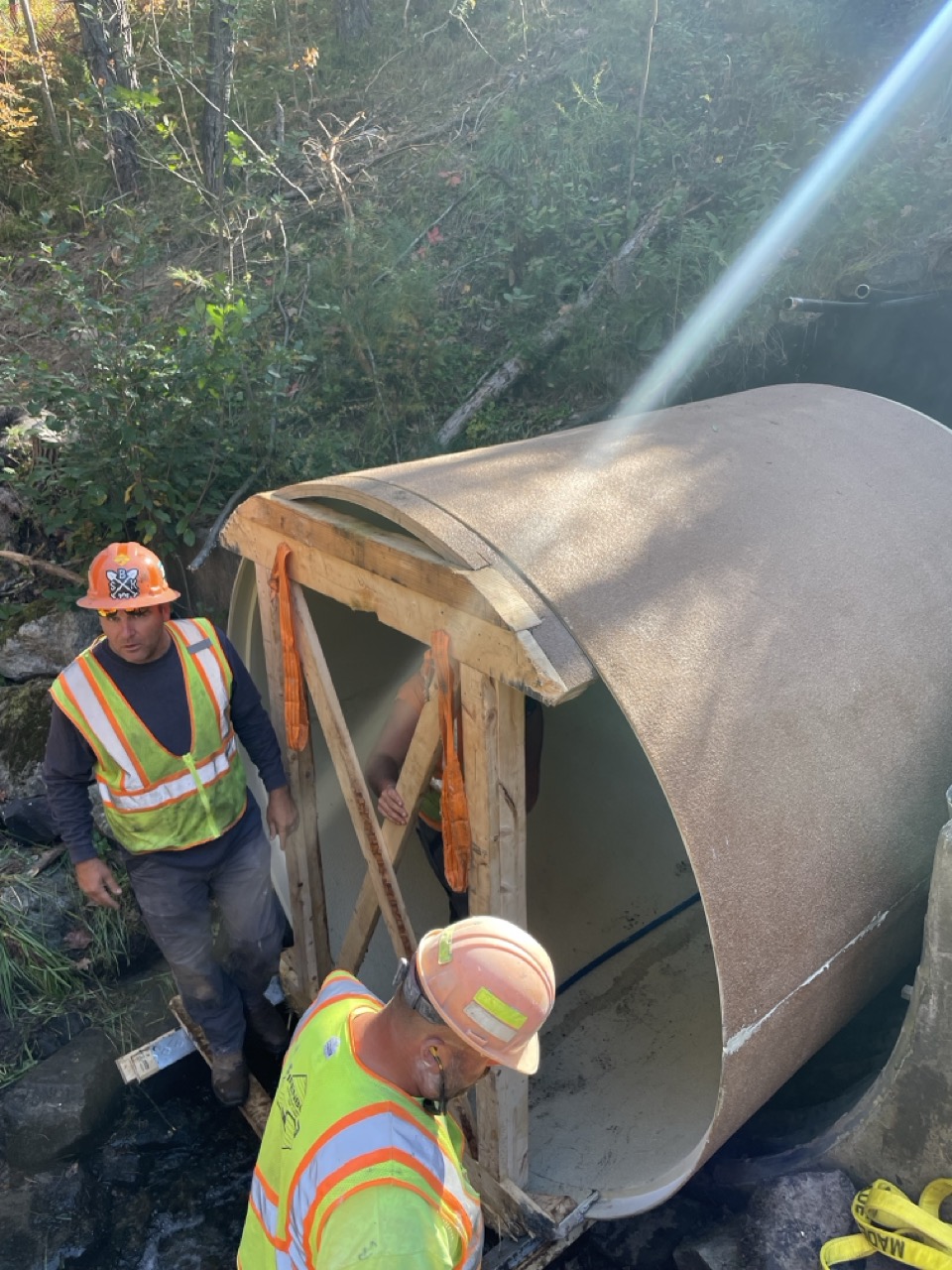

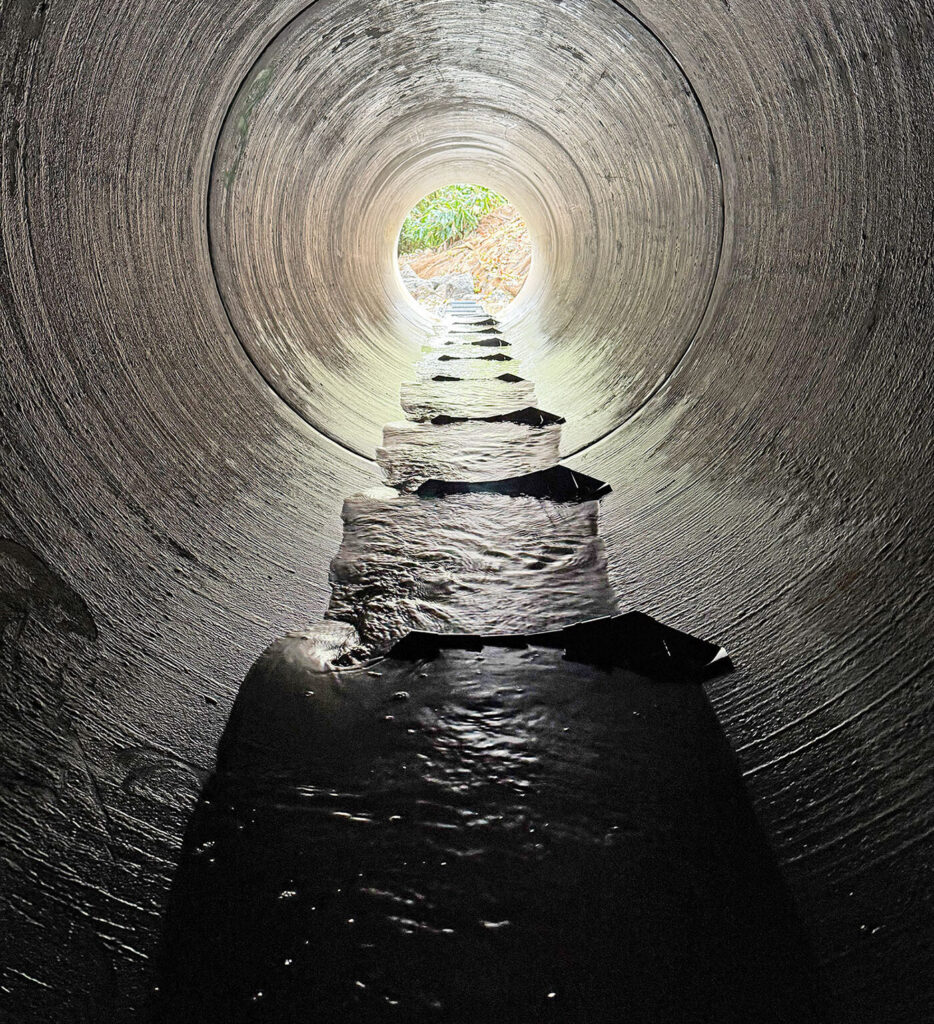

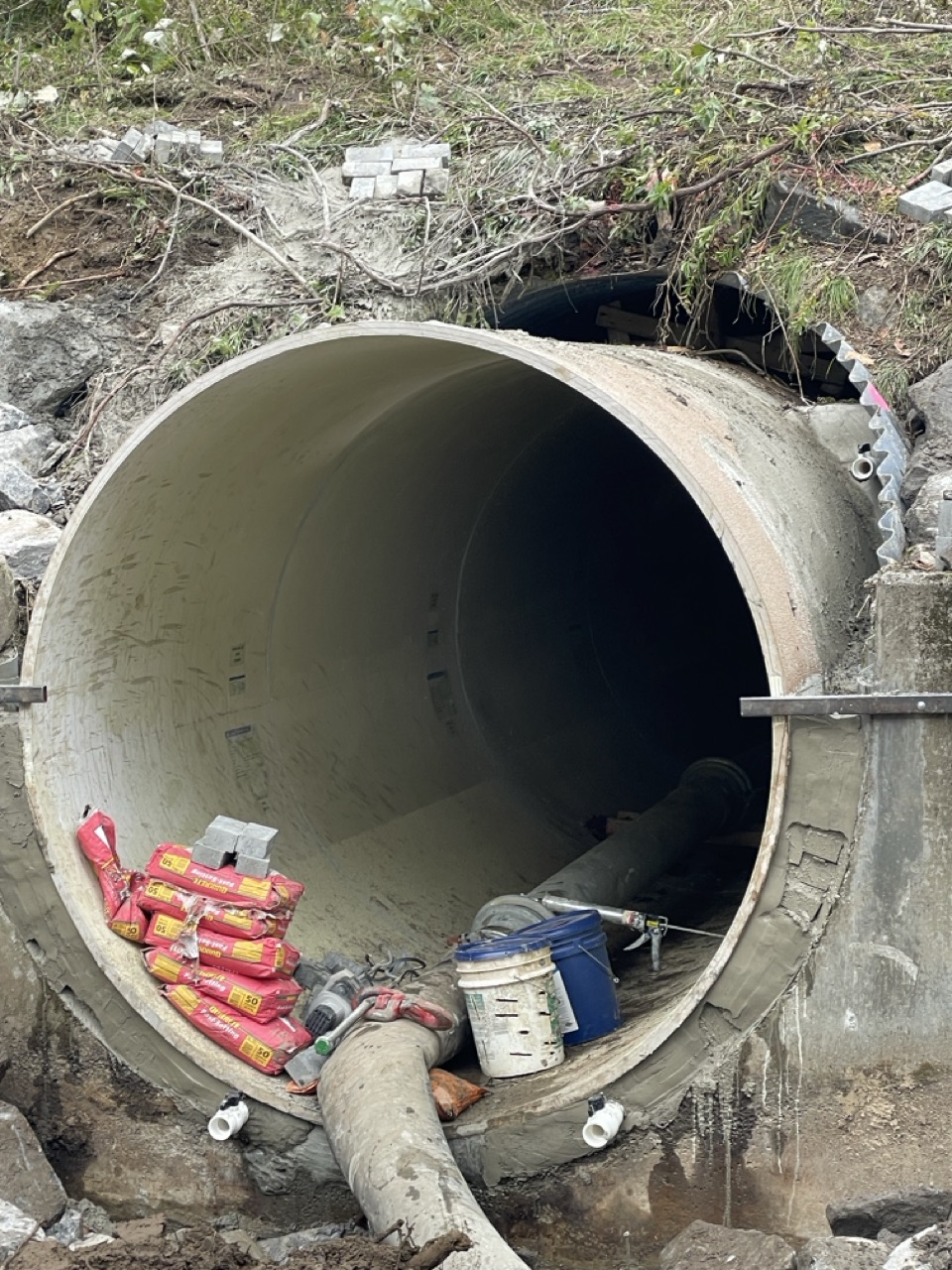

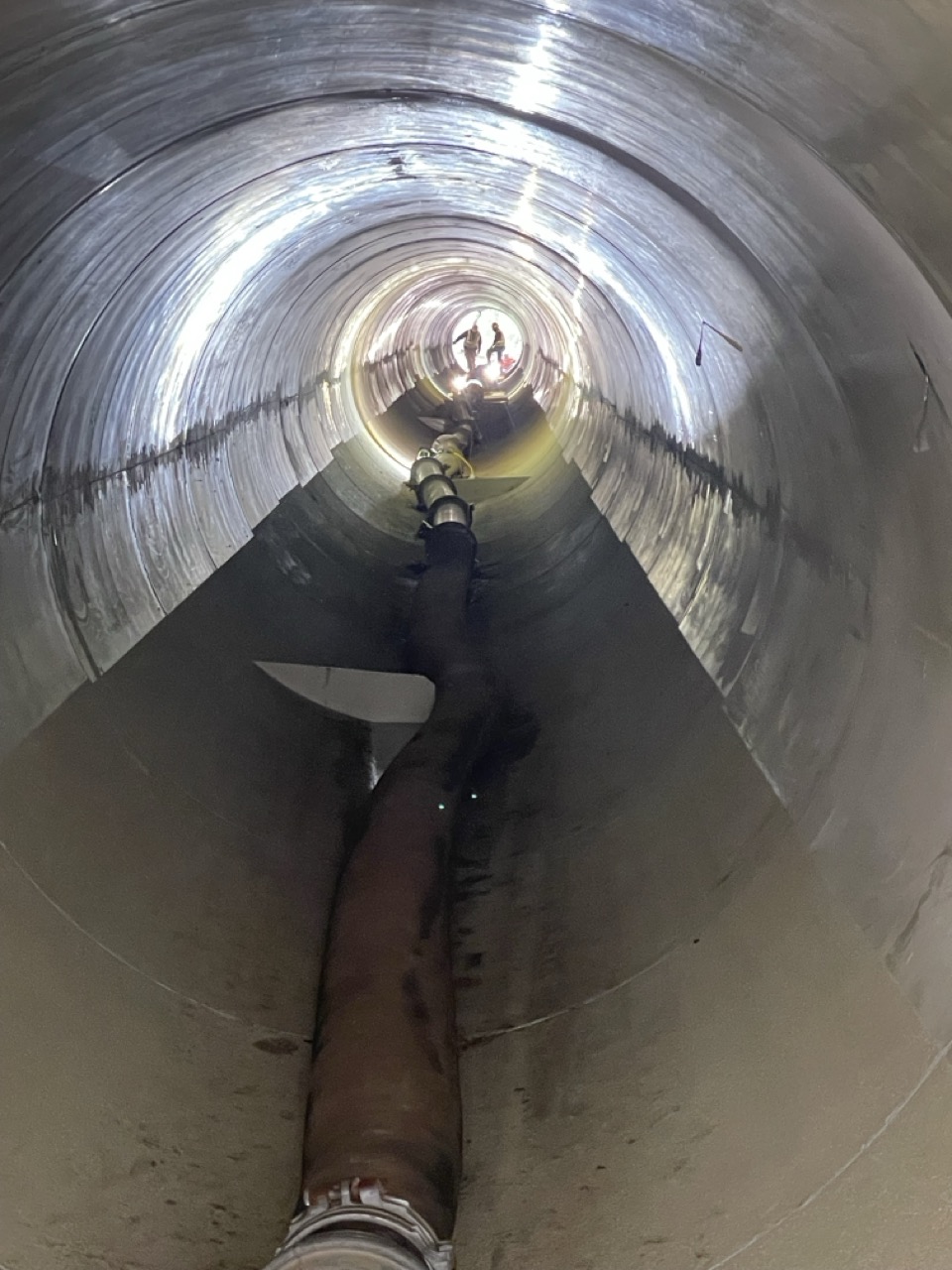

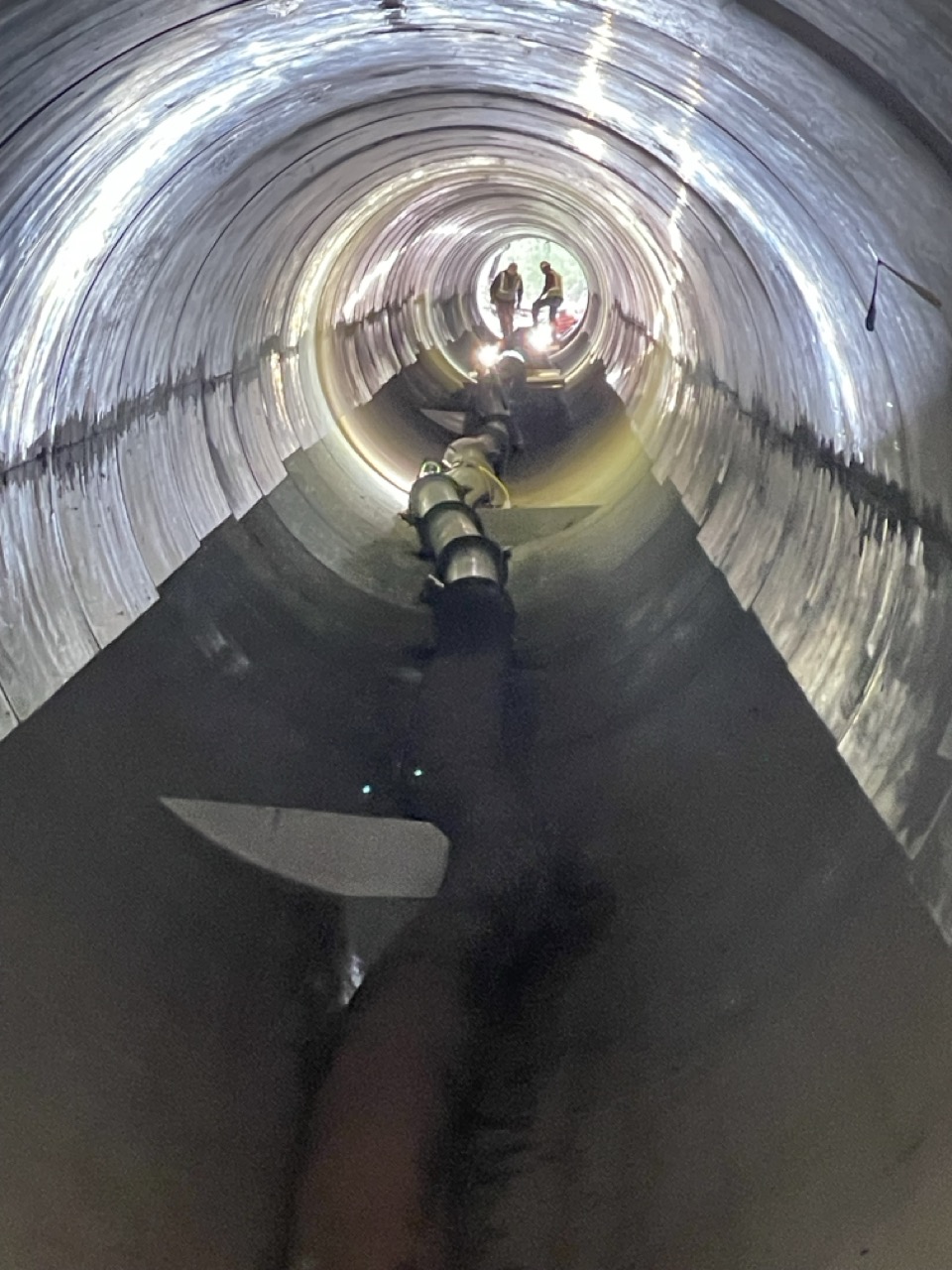

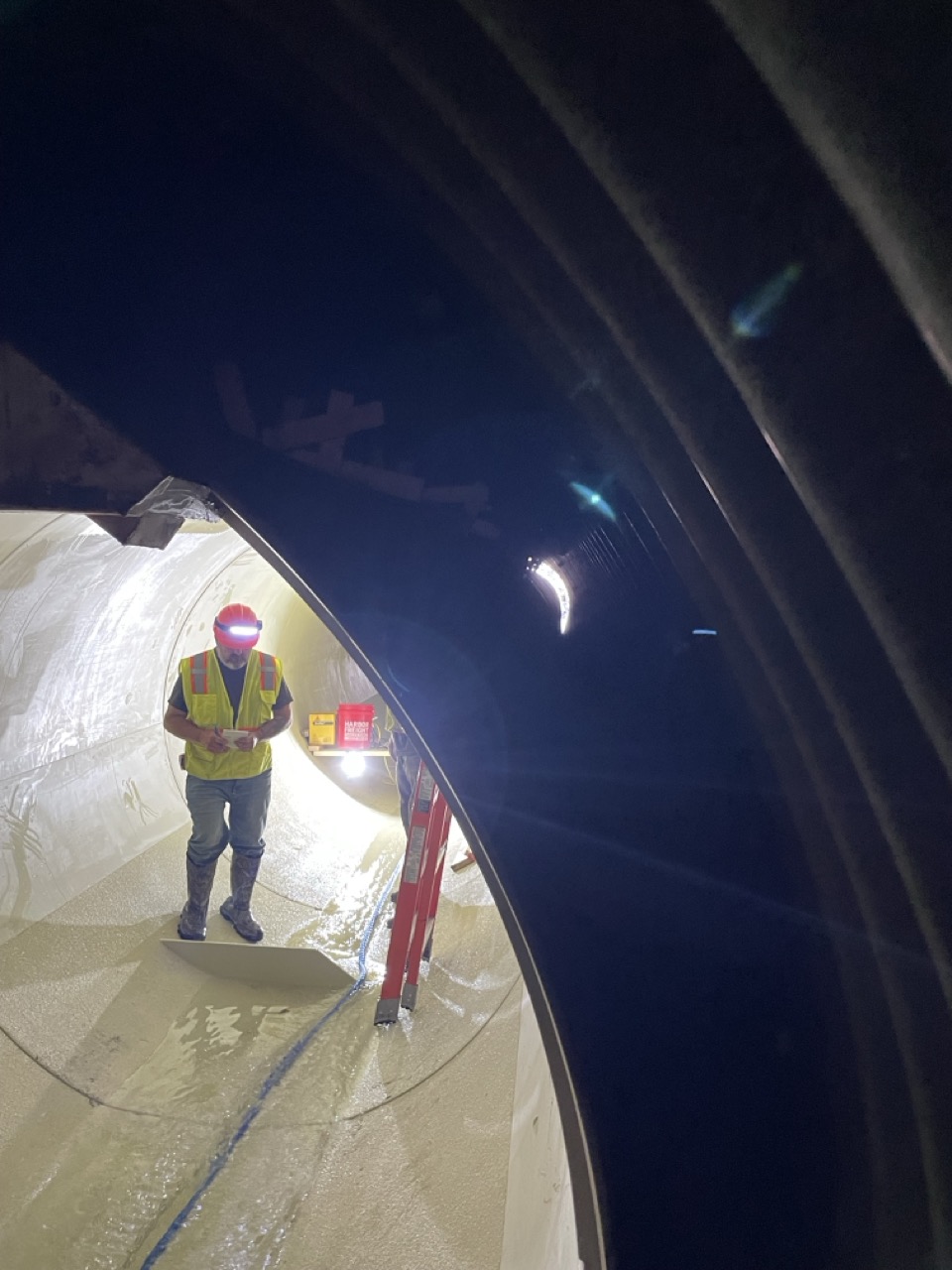

For structurally sound culverts requiring rehabilitation, Channeline systems can be installed with integrated FlexiBaffle technology by ATS. The FlexiBaffle system creates controlled step-pool formations within the pipe, reducing velocity and turbulence while providing resting zones for fish during migration events. This design helps fish successfully enter the culvert, traverse its length, and exit upstream to reach spawning grounds and feeding habitats.

By combining HDPE structural performance with engineered baffle systems, these technologies allow agencies to improve aquatic organism passage without sacrificing hydraulic capacity or roadway integrity. Rather than creating new environmental barriers, properly designed culvert rehabilitation and replacement projects can restore stream continuity, support fish populations, and meet modern regulatory requirements — all while protecting critical public infrastructure.

Frequently Asked Questions

Most frequent questions and answers

1. What is a fish ladder?

A fish ladder is an engineered structure that allows fish to bypass barriers such as culverts or dams by creating a series of stepped pools for upstream migration.

2. How do aquatic life baffles improve fish passage?

Aquatic life baffles slow water velocity and create resting areas inside culverts, allowing fish to move upstream without being swept back by high flows.

3. Why are fish ladders important for the environment?

Fish ladders restore stream connectivity, support spawning migration, and improve overall aquatic ecosystem health.

4. Can fish ladder systems be retrofitted into existing culverts?

Yes. Systems such as Snap-Tite aquatic life products and Channeline FlexiBaffles are designed for retrofit applications.

5. Do fish ladders impact roadway safety?

No. When properly engineered, fish ladder systems maintain hydraulic capacity and structural integrity to protect roads from flooding and washouts.

6. Are fish passage systems required by law?

Many environmental agencies require fish passage accommodations during culvert replacement or rehabilitation projects.

7. How long do fish ladder systems last?

Most systems are designed to match the roadway lifespan — typically 50 to 100 years — depending on environmental and structural conditions.

8. Is retrofitting baffles more cost-effective than replacing a culvert?

In many cases, yes. Retrofitting a structurally sound culvert can significantly reduce costs and environmental disruption.

9. How can I determine if my culvert is a fish migration barrier?

A hydraulic and environmental assessment can evaluate flow velocity, outlet drops, and structural conditions to determine whether a fish ladder or aquatic life baffle solution is needed.
